FREESPACE LOSS CALCULATOR FREE
The LoRa Wireless tutorial covers following sub topics: Main page LoRa tutorial LoRa Frequency Bands LoRa protocol stack LoRa MAC layer LoRaWAN classes LoRa features LoRa Transceiver module LoRaWAN wireless transceiver vendors Useful converters and calculatorsįollowing is the list of useful converters and calculators. Free Space Path Loss - Friis Equation As a transmitted signal traverses the atmosphere its voltage potential decreases at a rate proportional to the distance traveled (3 dB per distance doubling) and the power level decreases at a rate proportional to the square of the distance traveled (6 dB per distance doubling). LoRa Data Rate Calculator LoRa Link Budget Calculator LoRa Sensitivity Calculator LoRa Wireless Related Links

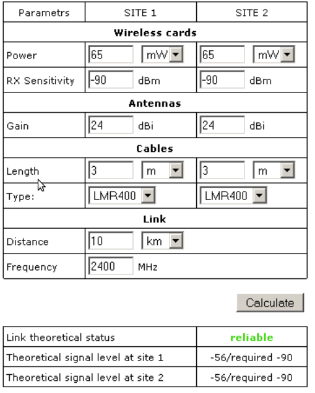

Refer RF Budget Calculator > with image and equations mentioned below.

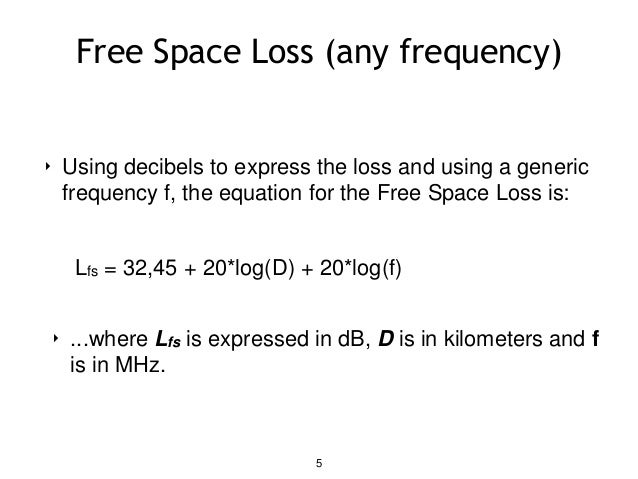

900 MHz ) (input1) : Mobile Antenna Gain (e.g. OUTPUTS: Path Loss = 103.62 dB Free Space path loss formulaįollowing Free Space path loss formula is used in this calculator to calculate path loss from distance and carrier frequency. Link Budget is a way of quantifying a communication links performance while accounting for the systems power, gains, and losses for both the transmitter (Tx) and receiver (Rx). Free Space path loss calculator Enter values as mentioned in the example to calculate free space path loss. INPUTS : Frequency = 900 MHz, distance = 4 km The free space path loss calculator takes into account the gain on both the receiving and transmitting antennas. Path Loss as per Free Space model (Output):ĮXAMPLE of Free space path loss calculator: The formula is: PATH LOSS(dB) 32.44 + 20log(F(. It takes frequency and distance as inputs and calculates path loss as output.įree space path loss formula is also mentioned.Įnter values as mentioned in the example to calculate free space path loss.Ĭarrier Frequency (e.g. Convert the TX power from watt to dBm and the RX power from dBm to uV with use of one of the calculators. However, this can be automatically converted to a real or percent via the pull-down menu. This page mentions Free space path loss calculator. Free-Space Path Loss (FSPL): The calculator returns the loss in dB. Lbf : free-space basic transmission loss (dB) d: distance : wavelength, and d and are expressed in the same unit. Free space path loss calculator | Free space path loss formula
